In this part of the GTK+ programming tutorial, we will introduce some GTK+ widgets.

Widgets are basic building blocks of a GUI application. Over the years, several widgets became a standard in all toolkits on all OS platforms. For example a button, a check box or a scroll bar. The GTK+ toolkit's philosophy is to keep the number of widgets at a minimum level. More specialized widgets are created as custom GTK+ widgets.

GtkButton

GtkButton is a simple widget, that is used to trigger an action.

#include &lt;gtk/gtk.h&gt;


int main( int argc, char *argv[])
{
  GtkWidget *window;
  GtkWidget *fixed;
  GtkWidget *button;

  gtk_init(&argc, &argv);

  window = gtk_window_new(GTK_WINDOW_TOPLEVEL);
  gtk_window_set_title(GTK_WINDOW(window), "GtkButton");
  gtk_window_set_default_size(GTK_WINDOW(window), 230, 150);
  gtk_window_set_position(GTK_WINDOW(window), GTK_WIN_POS_CENTER);

  fixed = gtk_fixed_new();
  gtk_container_add(GTK_CONTAINER(window), fixed);

  button = gtk_button_new_with_label("Quit");

  gtk_fixed_put(GTK_FIXED(fixed), button, 50, 50);
  gtk_widget_set_size_request(button, 80, 35);

  g_signal_connect(G_OBJECT(button), "clicked",
      G_CALLBACK(gtk_main_quit), G_OBJECT(window));

  g_signal_connect_swapped(G_OBJECT(window), "destroy",
      G_CALLBACK(gtk_main_quit), NULL);

  gtk_widget_show_all(window);

  gtk_main();

  return 0;
}

The example shows a button that is positioned in a fixed container. The application quits, when we click on the button.

 button = gtk_button_new_with_label("Quit");

This code line creates a GtkButton with a label.

  g_signal_connect(G_OBJECT(button), "clicked",
      G_CALLBACK(gtk_main_quit), G_OBJECT(window));

Here we connect a clicked signal to the button. The signal will launch the gtk_main_quit() function, which terminates the application.

GtkCheckButton

GtkCheckButton is a widget, that has two states. On and Off. The On state is visualised by a check mark.

#include &lt;gtk/gtk.h&gt;


void toggle_title(GtkWidget *widget, gpointer window)
{
  if (gtk_toggle_button_get_active(GTK_TOGGLE_BUTTON(widget))) {
      gtk_window_set_title(window, "GtkCheckButton");
  } else {
      gtk_window_set_title(window, "");
  }
}

int main(int argc, char** argv) {

  GtkWidget *window;
  GtkWidget *frame;
  GtkWidget *check;

  gtk_init(&argc, &argv);

  window = gtk_window_new(GTK_WINDOW_TOPLEVEL);
  gtk_window_set_position(GTK_WINDOW(window), GTK_WIN_POS_CENTER);
  gtk_window_set_default_size(GTK_WINDOW(window), 230, 150);
  gtk_window_set_title(GTK_WINDOW(window), "GtkCheckButton");


  frame = gtk_fixed_new();
  gtk_container_add(GTK_CONTAINER(window), frame);


  check = gtk_check_button_new_with_label("Show title");
  gtk_toggle_button_set_active(GTK_TOGGLE_BUTTON(check), TRUE);
  GTK_WIDGET_UNSET_FLAGS(check, GTK_CAN_FOCUS);
  gtk_fixed_put(GTK_FIXED(frame), check, 50, 50);

  g_signal_connect_swapped(window, "destroy",
          G_CALLBACK(gtk_main_quit), NULL);

  g_signal_connect(check, "clicked",
          G_CALLBACK(toggle_title), (gpointer) window);

  gtk_widget_show_all(window);

  gtk_main();

  return 0;
}

We will show a title depending on the state of the GtkCheckButton.

 check = gtk_check_button_new_with_label("Show title");
 gtk_toggle_button_set_active(GTK_TOGGLE_BUTTON(check), TRUE);

The GtkCheckButton is created and is marked by default. Because we show a title by default.

 GTK_WIDGET_UNSET_FLAGS(check, GTK_CAN_FOCUS);

This code line disables the focus. I simply didn't like the rectangle over the check button. It does not look good.

 if (gtk_toggle_button_get_active(GTK_TOGGLE_BUTTON(widget))) {
    gtk_window_set_title(window, "GtkCheckButton");
 } else {
    gtk_window_set_title(window, "");
 }

We show the title of the window, depending on the state of the GtkCheckButton.

GtkFrame

GtkFrame is a bin with a decorative frame and optional label

#include &lt;gtk/gtk.h&gt;


int main( int argc, char *argv[])
{

  GtkWidget *window;
  GtkWidget *table;

  GtkWidget *frame1;
  GtkWidget *frame2;
  GtkWidget *frame3;
  GtkWidget *frame4;

  gtk_init(&argc, &argv);

  window = gtk_window_new(GTK_WINDOW_TOPLEVEL);
  gtk_window_set_position(GTK_WINDOW(window), GTK_WIN_POS_CENTER);
  gtk_window_set_default_size(GTK_WINDOW(window), 250, 250);
  gtk_window_set_title(GTK_WINDOW(window), "GtkFrame");

  gtk_container_set_border_width(GTK_CONTAINER(window), 10);

  table = gtk_table_new(2, 2, TRUE);
  gtk_table_set_row_spacings(GTK_TABLE(table), 10);
  gtk_table_set_col_spacings(GTK_TABLE(table), 10);
  gtk_container_add(GTK_CONTAINER(window), table);


  frame1 = gtk_frame_new("Shadow In");
  gtk_frame_set_shadow_type(GTK_FRAME(frame1), GTK_SHADOW_IN);
  frame2 = gtk_frame_new("Shadow Out");
  gtk_frame_set_shadow_type(GTK_FRAME(frame2), GTK_SHADOW_OUT);
  frame3 = gtk_frame_new("Shadow Etched In");
  gtk_frame_set_shadow_type(GTK_FRAME(frame3), GTK_SHADOW_ETCHED_IN);
  frame4 = gtk_frame_new("Shadow Etched Out");
  gtk_frame_set_shadow_type(GTK_FRAME(frame4), GTK_SHADOW_ETCHED_OUT);


  gtk_table_attach_defaults(GTK_TABLE(table), frame1, 0, 1, 0, 1);
  gtk_table_attach_defaults(GTK_TABLE(table), frame2, 0, 1, 1, 2);
  gtk_table_attach_defaults(GTK_TABLE(table), frame3, 1, 2, 0, 1);
  gtk_table_attach_defaults(GTK_TABLE(table), frame4, 1, 2, 1, 2);

  g_signal_connect_swapped(G_OBJECT(window), "destroy",
        G_CALLBACK(gtk_main_quit), G_OBJECT(window));

  gtk_widget_show_all(window);

  gtk_main();

  return 0;
}

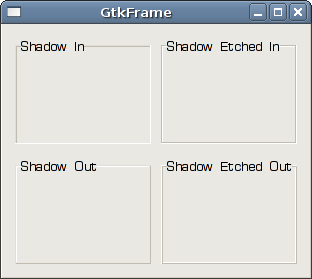

The example shows four different frame types. The frames are attached into a table container.

 frame1 = gtk_frame_new("Shadow In");
 gtk_frame_set_shadow_type(GTK_FRAME(frame1), GTK_SHADOW_IN);

We create a GtkFrame and set it's shadow type.

GtkLabel

The GtkLabel widget displays text.

#include &lt;gtk/gtk.h&gt;


int main( int argc, char *argv[])
{
  GtkWidget *window;
  GtkWidget *label;

  gtk_init(&argc, &argv);

  window = gtk_window_new(GTK_WINDOW_TOPLEVEL);
  gtk_window_set_position(GTK_WINDOW(window), GTK_WIN_POS_CENTER);
  gtk_window_set_title(GTK_WINDOW(window), "Nymphetamine");
  gtk_window_set_default_size(GTK_WINDOW(window), 350, 400);

  label = gtk_label_new("Cold was my soul\n\
Untold was the pain\n\
I faced when you left me\n\
A rose in the rain....\n\
So I swore to the razor\n\
That never, enchained\n\
Would your dark nails of faith\n\
Be pushed through my veins again\n\
\n\
Bared on your tomb\n\
I'm a prayer for your loneliness\n\
And would you ever soon\n\
Come above onto me?\n\
For once upon a time\n\
On the binds of your lowliness\n\
I could always find the slot for your sacred key ");

  gtk_label_set_justify(GTK_LABEL(label), GTK_JUSTIFY_CENTER);
  gtk_container_add(GTK_CONTAINER(window), label);

  g_signal_connect_swapped(window, "destroy",
      G_CALLBACK (gtk_main_quit), NULL);

  gtk_widget_show_all(window);

  gtk_main();

  return 0;
}

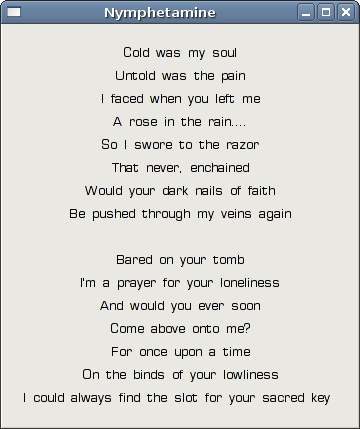

The example shows lyrics of a song.

  label = gtk_label_new("Cold was my soul\n\
Untold was the pain\n\
...

We create a GtkLabel widget. We can create multiline text label by using a new line character. Note the escape character. We use a rather long string and we don't want to put all the text into one line. In such cases, we can use an escape character.

 gtk_label_set_justify(GTK_LABEL(label), GTK_JUSTIFY_CENTER);

We center our label.

In GtkLabel we can also use markup language. The next example shows how we can accomplish this.

#include &lt;gtk/gtk.h&gt;


int main( int argc, char *argv[])
{
  GtkWidget *window;
  GtkWidget *label;

  gtk_init(&argc, &argv);

  window = gtk_window_new(GTK_WINDOW_TOPLEVEL);
  gtk_window_set_position(GTK_WINDOW(window), GTK_WIN_POS_CENTER);
  gtk_window_set_title(GTK_WINDOW(window), "markup label");

  char *str = "&lt;b&gt;ZetCode&lt;/b&gt;, Knowledge only matters";

  label = gtk_label_new(NULL);
  gtk_label_set_markup(GTK_LABEL(label), str);

  gtk_label_set_justify(GTK_LABEL(label), GTK_JUSTIFY_CENTER);
  gtk_container_add(GTK_CONTAINER(window), label);
  gtk_widget_show(label);

  gtk_window_set_default_size(GTK_WINDOW(window), 300, 100);

  g_signal_connect(window, "destroy",
      G_CALLBACK (gtk_main_quit), NULL);

  gtk_widget_show(window);

  gtk_main();

  return 0;
}

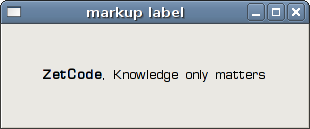

The example shows a portion of text in bold.

 char *str = "&lt;b&gt;ZetCode&lt;/b&gt;, Knowledge only matters";

This is the string, we are going to display.

  label = gtk_label_new(NULL);
  gtk_label_set_markup(GTK_LABEL(label), str);

We create an empty label and set a markup text for it.

GtkComboBox

GtkComboBox is a widget that allows the user to choose from a list of options.

#include &lt;gtk/gtk.h&gt;

void combo_selected(GtkWidget *widget, gpointer window)
{
  gchar *text =  gtk_combo_box_get_active_text(GTK_COMBO_BOX(widget));
  gtk_label_set_text(GTK_LABEL(window), text);
  g_free(text);
}


int main( int argc, char *argv[])
{

  GtkWidget *window;
  GtkWidget *fixed;
  GtkWidget *combo;
  GtkWidget *label;

  gtk_init(&argc, &argv);

  window = gtk_window_new(GTK_WINDOW_TOPLEVEL);
  gtk_window_set_title(GTK_WINDOW(window), "GtkCombo");
  gtk_window_set_position(GTK_WINDOW(window), GTK_WIN_POS_CENTER);
  gtk_window_set_default_size(GTK_WINDOW(window), 230, 150);

  fixed = gtk_fixed_new();

  combo = gtk_combo_box_new_text();
  gtk_combo_box_append_text(GTK_COMBO_BOX(combo), "Ubuntu");
  gtk_combo_box_append_text(GTK_COMBO_BOX(combo), "Mandriva");
  gtk_combo_box_append_text(GTK_COMBO_BOX(combo), "Fedora");
  gtk_combo_box_append_text(GTK_COMBO_BOX(combo), "Mint");
  gtk_combo_box_append_text(GTK_COMBO_BOX(combo), "Gentoo");
  gtk_combo_box_append_text(GTK_COMBO_BOX(combo), "Debian");

  gtk_fixed_put(GTK_FIXED(fixed), combo, 50, 50);
  gtk_container_add(GTK_CONTAINER(window), fixed);

  label = gtk_label_new("-");
  gtk_fixed_put(GTK_FIXED(fixed), label, 50, 110);

  g_signal_connect_swapped(G_OBJECT(window), "destroy",
        G_CALLBACK(gtk_main_quit), G_OBJECT(window));

  g_signal_connect(G_OBJECT(combo), "changed",
        G_CALLBACK(combo_selected), (gpointer) label);

  gtk_widget_show_all(window);

  gtk_main();

  return 0;
}

The example shows a combo box and a label. The combo box has a list of six options. These are the names of Linux Distros. The label widget shows the selected option from the combo box.

 combo = gtk_combo_box_new_text();
 gtk_combo_box_append_text(GTK_COMBO_BOX(combo), "Ubuntu");
 gtk_combo_box_append_text(GTK_COMBO_BOX(combo), "Mandriva");
 gtk_combo_box_append_text(GTK_COMBO_BOX(combo), "Fedora");
 gtk_combo_box_append_text(GTK_COMBO_BOX(combo), "Mint");
 gtk_combo_box_append_text(GTK_COMBO_BOX(combo), "Gentoo");
 gtk_combo_box_append_text(GTK_COMBO_BOX(combo), "Debian");

We create a GtkComboBox and fill it with a list of Linux Distribution names.

 label = gtk_label_new("-");

We also create a label widget.

 gchar *text =  gtk_combo_box_get_active_text(GTK_COMBO_BOX(widget));
 gtk_label_set_text(GTK_LABEL(window), text);
 g_free(text);

We get the selected text and set the label text to it. The documentation to the combo box says, that gtk_combo_box_get_active_text() returns a newly allocated string containing the currently active text. This means, that we must free the memory.

GtkHSeparator

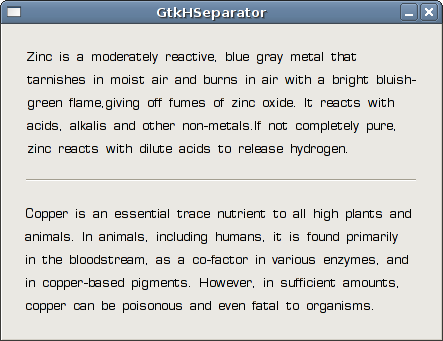

The GtkHSeparator is is a horizontal separator. It is a kind of an ornament widget. This widgets serves some design purposes. There is also a sister GtkVSeparator widget.

#include &lt;gtk/gtk.h&gt;

int main( int argc, char *argv[])
{

  GtkWidget *window;
  GtkWidget *label1;
  GtkWidget *label2;
  GtkWidget *hseparator;
  GtkWidget *vbox;

  gtk_init(&argc, &argv);

  window = gtk_window_new(GTK_WINDOW_TOPLEVEL);
  gtk_window_set_position(GTK_WINDOW(window), GTK_WIN_POS_CENTER);
  gtk_window_set_title(GTK_WINDOW(window), "GtkHSeparator");
  gtk_window_set_resizable(GTK_WINDOW(window), FALSE);

  gtk_container_set_border_width(GTK_CONTAINER(window), 20);

  label1 = gtk_label_new("Zinc is a moderately reactive, blue gray metal \
that tarnishes in moist air and burns in air with a bright bluish-green flame,\
giving off fumes of zinc oxide. It reacts with acids, alkalis and other non-metals.\
If not completely pure, zinc reacts with dilute acids to release hydrogen.");

  gtk_label_set_line_wrap(GTK_LABEL(label1), TRUE);

  label2 = gtk_label_new("Copper is an essential trace nutrient to all high \
plants and animals. In animals, including humans, it is found primarily in \
the bloodstream, as a co-factor in various enzymes, and in copper-based pigments. \
However, in sufficient amounts, copper can be poisonous and even fatal to organisms.");

  gtk_label_set_line_wrap(GTK_LABEL(label2), TRUE);

  vbox = gtk_vbox_new(FALSE, 10);
  gtk_container_add(GTK_CONTAINER(window), vbox);

  hseparator = gtk_hseparator_new();

  gtk_box_pack_start(GTK_BOX(vbox), label1, FALSE, TRUE, 0);
  gtk_box_pack_start(GTK_BOX(vbox), hseparator, FALSE, TRUE, 10);
  gtk_box_pack_start(GTK_BOX(vbox), label2, FALSE, TRUE, 0);


  g_signal_connect_swapped(G_OBJECT(window), "destroy",
        G_CALLBACK(gtk_main_quit), G_OBJECT(window));

  gtk_widget_show_all(window);

  gtk_main();

  return 0;
}

The code example shows definitions of two chemical elements. They are separated by a horizontal separator. This makes the example more visually appealing.

   label1 = gtk_label_new("Zinc is a moderately reactive, blue gray metal \
that tarnishes in moist air and burns in air with a bright bluish-green flame,\
giving off fumes of zinc oxide. It reacts with acids, alkalis and other non-metals.\
If not completely pure, zinc reacts with dilute acids to release hydrogen.");

We create the first label, the definition of the Zinc element.

 gtk_label_set_line_wrap(GTK_LABEL(label2), TRUE);

We wrap the text.

hseparator = gtk_hseparator_new();

We create a horizontal separator.

 gtk_box_pack_start(GTK_BOX(vbox), label1, FALSE, TRUE, 0);
 gtk_box_pack_start(GTK_BOX(vbox), hseparator, FALSE, TRUE, 10);
 gtk_box_pack_start(GTK_BOX(vbox), label2, FALSE, TRUE, 0);

We place the separator between the labels.

GtkEntry

GtkEntry is a single line text entry field. This widget is used to enter textual data.

#include &lt;gtk/gtk.h&gt;


int main(int argc, char *argv[]) {

  GtkWidget *window;
  GtkWidget *table;

  GtkWidget *label1;
  GtkWidget *label2;
  GtkWidget *label3;

  GtkWidget *entry1;
  GtkWidget *entry2;
  GtkWidget *entry3;

  gtk_init(&argc, &argv);

  window = gtk_window_new(GTK_WINDOW_TOPLEVEL);
  gtk_window_set_position(GTK_WINDOW(window), GTK_WIN_POS_CENTER);
  gtk_window_set_title(GTK_WINDOW(window), "GtkEntry");
  gtk_container_set_border_width(GTK_CONTAINER(window), 10);

  table = gtk_table_new(3, 2, FALSE);
  gtk_container_add(GTK_CONTAINER(window), table);

  label1 = gtk_label_new("Name");
  label2 = gtk_label_new("Age");
  label3 = gtk_label_new("Occupation");


  gtk_table_attach(GTK_TABLE(table), label1, 0, 1, 0, 1,
      GTK_FILL | GTK_SHRINK, GTK_FILL | GTK_SHRINK, 5, 5);
  gtk_table_attach(GTK_TABLE(table), label2, 0, 1, 1, 2,
      GTK_FILL | GTK_SHRINK, GTK_FILL | GTK_SHRINK, 5, 5);
  gtk_table_attach(GTK_TABLE(table), label3, 0, 1, 2, 3,
      GTK_FILL | GTK_SHRINK, GTK_FILL | GTK_SHRINK, 5, 5);

  entry1 = gtk_entry_new();
  entry2 = gtk_entry_new();
  entry3 = gtk_entry_new();

  gtk_table_attach(GTK_TABLE(table), entry1, 1, 2, 0, 1,
      GTK_FILL | GTK_SHRINK, GTK_FILL | GTK_SHRINK, 5, 5);
  gtk_table_attach(GTK_TABLE(table), entry2, 1, 2, 1, 2,
      GTK_FILL | GTK_SHRINK, GTK_FILL | GTK_SHRINK, 5, 5);
  gtk_table_attach(GTK_TABLE(table), entry3, 1, 2, 2, 3,
      GTK_FILL | GTK_SHRINK, GTK_FILL | GTK_SHRINK, 5, 5);

  gtk_widget_show(table);

  gtk_widget_show(label1);
  gtk_widget_show(label2);
  gtk_widget_show(label3);

  gtk_widget_show(entry1);
  gtk_widget_show(entry2);
  gtk_widget_show(entry3);

  gtk_widget_show(window);

  g_signal_connect(window, "destroy",
      G_CALLBACK(gtk_main_quit), NULL);

  gtk_main();

  return 0;
}

In our example we show three text entries and three labels.

 table = gtk_table_new(3, 2, FALSE);
 gtk_container_add(GTK_CONTAINER(window), table);

To organize our widgets, we use the table container widget.

 entry1 = gtk_entry_new();
 entry2 = gtk_entry_new();
 entry3 = gtk_entry_new();

Here we create three text entries.

 gtk_table_attach(GTK_TABLE(table), entry1, 1, 2, 0, 1,
     GTK_FILL | GTK_SHRINK, GTK_FILL | GTK_SHRINK, 5, 5);
 gtk_table_attach(GTK_TABLE(table), entry2, 1, 2, 1, 2,
     GTK_FILL | GTK_SHRINK, GTK_FILL | GTK_SHRINK, 5, 5);
 gtk_table_attach(GTK_TABLE(table), entry3, 1, 2, 2, 3,
     GTK_FILL | GTK_SHRINK, GTK_FILL | GTK_SHRINK, 5, 5);

We attacht the widgets to the table widget.

GtkImage

GtkImage is a widget used to display an image.

#include &lt;gtk/gtk.h&gt;

int main( int argc, char *argv[])
{

  GtkWidget *window;
  GtkWidget *image;

  gtk_init(&argc, &argv);

  window = gtk_window_new(GTK_WINDOW_TOPLEVEL);
  gtk_window_set_position(GTK_WINDOW(window), GTK_WIN_POS_CENTER);
  gtk_window_set_default_size(GTK_WINDOW(window), 230, 150);
  gtk_window_set_title(GTK_WINDOW(window), "Red Rock");
  gtk_window_set_resizable(GTK_WINDOW(window), FALSE);

  gtk_container_set_border_width(GTK_CONTAINER(window), 2);

  image = gtk_image_new_from_file("redrock.png");
  gtk_container_add(GTK_CONTAINER(window), image);


  g_signal_connect_swapped(G_OBJECT(window), "destroy",
        G_CALLBACK(gtk_main_quit), G_OBJECT(window));

  gtk_widget_show_all(window);

  gtk_main();

  return 0;
}

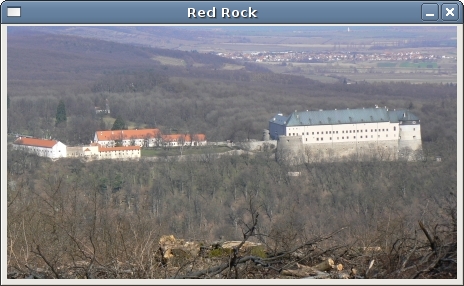

In our example we show an image of a castle. The castle is called Red Rock and is situated in the western part of Slovakia.

 gtk_container_set_border_width(GTK_CONTAINER(window), 2);

We put a small 2px border around the picture.

 image = gtk_image_new_from_file("redrock.png");
 gtk_container_add(GTK_CONTAINER(window), image);

We load an image from the file and add it into the container.

GtkStatusbar

GtkStatusbar displays status information. It is placed at the bottom of the application window.

#include &lt;gtk/gtk.h&gt;


void button_pressed(GtkWidget *widget, gpointer window)
{
   gchar *str;
   str = g_strdup_printf("Button %s clicked",
         gtk_button_get_label(GTK_BUTTON(widget)));

   gtk_statusbar_push(GTK_STATUSBAR(window),
         gtk_statusbar_get_context_id(GTK_STATUSBAR(window), str), str);
   g_free(str);
}

int main( int argc, char *argv[])
{

  GtkWidget *window;
  GtkWidget *fixed;
  GtkWidget *button1;
  GtkWidget *button2;
  GtkWidget *statusbar;
  GtkWidget *vbox;

  gtk_init(&argc, &argv);

  window = gtk_window_new(GTK_WINDOW_TOPLEVEL);
  gtk_window_set_position(GTK_WINDOW(window), GTK_WIN_POS_CENTER);
  gtk_window_set_default_size(GTK_WINDOW(window), 280, 150);
  gtk_window_set_title(GTK_WINDOW(window), "GtkStatusbar");

  vbox = gtk_vbox_new(FALSE, 2);

  fixed = gtk_fixed_new();
  gtk_container_add(GTK_CONTAINER(window), vbox);

  gtk_box_pack_start(GTK_BOX(vbox), fixed, TRUE, TRUE, 1);

  button1 = gtk_button_new_with_label("OK");
  gtk_widget_set_size_request(button1, 80, 30 );
  button2 = gtk_button_new_with_label("Apply");
  gtk_widget_set_size_request(button2, 80, 30 );

  gtk_fixed_put(GTK_FIXED(fixed), button1, 50, 50);
  gtk_fixed_put(GTK_FIXED(fixed), button2, 150, 50);


  statusbar = gtk_statusbar_new();
  gtk_box_pack_start(GTK_BOX(vbox), statusbar, FALSE, TRUE, 1);

  g_signal_connect(G_OBJECT(button1), "clicked",
           G_CALLBACK(button_pressed), G_OBJECT(statusbar));

  g_signal_connect(G_OBJECT(button2), "clicked",
           G_CALLBACK(button_pressed), G_OBJECT(statusbar));

  g_signal_connect_swapped(G_OBJECT(window), "destroy",
        G_CALLBACK(gtk_main_quit), G_OBJECT(window));

  gtk_widget_show_all(window);

  gtk_main();

  return 0;
}

In our code example we show two buttons and a statusbar. If we click on the button, a message is displayed in the statusbar. It says, which button we have pressed.

 gchar *str;
 str = g_strdup_printf("Button %s clicked",
       gtk_button_get_label(GTK_BUTTON(widget)));

We create a message.

 gtk_statusbar_push(GTK_STATUSBAR(window),
      gtk_statusbar_get_context_id(GTK_STATUSBAR(window), str), str);

We show the message in the statusbar.

GtkIconView

The GtkIconView is a widget which displays a list of icons in a grid.

#include &lt;gtk/gtk.h&gt;
#include &lt;assert.h&gt;

enum
{
  COL_DISPLAY_NAME,
  COL_PIXBUF,
  NUM_COLS
};


GtkTreeModel * init_model(void)
{
  GtkListStore *list_store;
  GdkPixbuf *p1, *p2, *p3, *p4;
  GtkTreeIter iter;
  GError *err = NULL;


  p1 = gdk_pixbuf_new_from_file("ubuntu.png", &err);
  p2 = gdk_pixbuf_new_from_file("gnumeric.png", &err);
  p3 = gdk_pixbuf_new_from_file("blender.png", &err);
  p4 = gdk_pixbuf_new_from_file("inkscape.png", &err);

  assert(err==NULL);

  list_store = gtk_list_store_new(NUM_COLS,
      G_TYPE_STRING, GDK_TYPE_PIXBUF);

  int i = 0;
  for (i; i < 50; i++) {
    gtk_list_store_append(list_store, &iter);
    gtk_list_store_set(list_store, &iter, COL_DISPLAY_NAME,
        "ubuntu", COL_PIXBUF, p1, -1);
    gtk_list_store_append(list_store, &iter);
    gtk_list_store_set(list_store, &iter, COL_DISPLAY_NAME,
        "gnumeric", COL_PIXBUF, p2, -1);
    gtk_list_store_append(list_store, &iter);
    gtk_list_store_set(list_store, &iter, COL_DISPLAY_NAME,
        "blender", COL_PIXBUF, p3, -1);
    gtk_list_store_append(list_store, &iter);
    gtk_list_store_set(list_store, &iter, COL_DISPLAY_NAME,
        "inkscape", COL_PIXBUF, p4, -1);
  }

  return GTK_TREE_MODEL(list_store);
}

int main (int argc, char *argv[])
{
  GtkWidget *window;
  GtkWidget *icon_view;
  GtkWidget *sw;

  gtk_init (&argc, &argv);

  window = gtk_window_new(GTK_WINDOW_TOPLEVEL);

  gtk_window_set_title(GTK_WINDOW (window), "Icon View");
  gtk_window_set_position(GTK_WINDOW(window), GTK_WIN_POS_CENTER);
  gtk_container_set_border_width(GTK_CONTAINER(window), 10);
  gtk_widget_set_size_request(window, 350, 330);

  sw = gtk_scrolled_window_new(NULL, NULL);
  gtk_container_add(GTK_CONTAINER (window), sw);
  gtk_scrolled_window_set_policy(GTK_SCROLLED_WINDOW(sw),
      GTK_POLICY_AUTOMATIC, GTK_POLICY_AUTOMATIC);
  gtk_scrolled_window_set_shadow_type(GTK_SCROLLED_WINDOW(sw),
      GTK_SHADOW_IN);

  icon_view = gtk_icon_view_new_with_model(init_model());
  gtk_container_add(GTK_CONTAINER(sw), icon_view);

  gtk_icon_view_set_text_column(GTK_ICON_VIEW(icon_view),
      COL_DISPLAY_NAME);
  gtk_icon_view_set_pixbuf_column(GTK_ICON_VIEW(icon_view),
      COL_PIXBUF);
  gtk_icon_view_set_selection_mode(GTK_ICON_VIEW(icon_view),
      GTK_SELECTION_MULTIPLE);

  g_signal_connect(window, "destroy", G_CALLBACK(gtk_main_quit), NULL);

  gtk_widget_show_all(window);

  gtk_main();

  return 0;
}

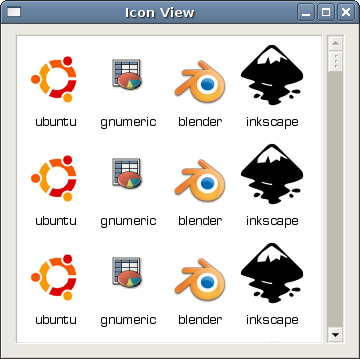

The example will display 200 icons. The icons represent four prominent open source projects.

 p1 = gdk_pixbuf_new_from_file("ubuntu.png", &err);
 p2 = gdk_pixbuf_new_from_file("gnumeric.png", &err);
 p3 = gdk_pixbuf_new_from_file("blender.png", &err);
 p4 = gdk_pixbuf_new_from_file("inkscape.png", &err);

We load 4 icons from the disk.

 list_store = gtk_list_store_new(NUM_COLS,
     G_TYPE_STRING, GDK_TYPE_PIXBUF);

We will store textual and pixbuf data.

 gtk_list_store_append(list_store, &iter);
 gtk_list_store_set(list_store, &iter, COL_DISPLAY_NAME,
     "ubuntu", COL_PIXBUF, p1, -1);

This code adds a new icon to the icon view.

  icon_view = gtk_icon_view_new_with_model(init_model());
  gtk_container_add(GTK_CONTAINER(sw), icon_view);

  gtk_icon_view_set_text_column(GTK_ICON_VIEW(icon_view),
      COL_DISPLAY_NAME);
  gtk_icon_view_set_pixbuf_column(GTK_ICON_VIEW(icon_view),
      COL_PIXBUF);

We create a GtkIconView widget and set an icon and it's name to the icon view.

Личные инструменты

Поиск

Библиотеки

Языки

Другое

Навигация

Инструменты

Просмотры
