Low-Level Text Layouts

Материал из Wiki.crossplatform.ru

Qt Quarterly | Выпуск 24 | Документация

One of the hidden benefits of Qt 4's rich text framework is the controlit gives developers over the low-level aspects of text layout.Although initially used to advertise Qt 4's plain text formatting abilities,the classes that perform much of the heavy lifting on behalf of QTextDocumentcan also be put to work on other tasks. In this article, we'll see how theycan make our text layouts more interesting.

In many applications that present rich text to users, the high-levelrich text facilities provided by QTextDocument are more than sufficient.We can import documents using an HTML-style markup language, create newdocuments from scratch by feeding in paragraphs, frames and tables using QTextCursor, and let the user edit documents using QTextEdit.

[править] Setting Limits

Many of Qt's widgets are able to display rich text thanks to the use of QTextDocument, whether behind the scenes in QLabel or part of thepublic API, as in QGraphicsItem. Unlike QTextEdit, these widgetsoften need to display rich text in a confined area, but they will always beable to assume that their text will be nicely formatted within a rectangulararea.

In some situations, it would be preferable to be able to present text withina non-rectangular area, such as inside a speech bubble, as in the imageabove. QTextDocumentlets us provide our own implementation of QAbstractTextDocumentLayoutto deal with situations like these. However, for simple display purposes,this is quite a lot of work. Since Qt's default implementation of QAbstractTextDocumentLayout uses QTextLayout to position text, wecan cut out the middleman and use that directly.

[править] Layouts and Lines

Each instance of QTextLayout is used to lay out a single paragraph oftext in a document. Although its purpose seems simple enough, QTextLayoutalso provides features to deal with editing and cursor handling. In thisarticle, we are concerned with its ability to perform line breaking.This activity takes the following form:

• We construct a QTextLayout object, passing the paragraph text anda font, and call its beginLayout() function to start the layout process.
• We call createLine() repeatedly to obtain QTextLine objectsthat we can use to arrange lines of text.
• When all lines have been laid out, we call endLayout() to indicatethat we have finished.

For each line, we do the following:

• We call the line's setPosition() function to indicate where theline should go.
• We call the line's setLineWidth() function to let the line knowhow much space is available.

    layout = QTextLayout(text, font, parent)
    layout.beginLayout()
    y = 0
    line = layout.createLine()

    while line.isValid():
        line.setPosition(leftMargin, y)
        line.setLineWidth(rightMargin - leftMargin)
        y += lineHeight
        line = layout.createLine()
    layout.endLayout()

With a basic understanding of the operation of QTextLayout, we can beginto think about arranging text within a shape.

[править] Shaping Up

In the pseudo-code shown above, we didn't define how the margins or line heightshould be calculated. The line height can be based on the height of a defaultfont, but the margin locations can be more challenging to calculate. In thisarticle, they are determined from the shape we want to fit the text inside.

To place lines of text within a given shape, we must first consider how torepresent it. QPainterPath objects are easy to create and can be convertedinto simpler representations quite easily, so we store our shapes using those.

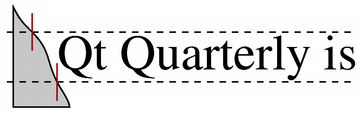

Conceptually, finding the area in which we can place a line of text at a givenvertical position is simply a matter of finding the points at which a horizontalline intersects with the path.

In practice, we will need two horizontal lines for each line of text, as shownin the diagram above, and we also need to find a way to determine where theyintersect with the path. We'll return to this problem later on.

[править] Putting It Together

We create a widget to explore our method, handling paintand resize events ourselves for full control over the text layout.

    class TextWidget : public QWidget
    {
        Q_OBJECT

    public:
        TextWidget(QWidget *parent = 0);
        QSize sizeHint() const;
        void setParagraphs(const QStringList &paras);

    public slots:
        void setShape(QPainterPath shape);

    protected:
        void paintEvent(QPaintEvent *event);
        void resizeEvent(QResizeEvent *event);

    private:
        void positionLayouts();

        qreal shapeWidth, shapeHeight;
        qreal xScale, yScale;
        ...
        QPainterPath shape;
        QList<QTextLayout *> layouts;
        QStringList paragraphs;
        QList<QList<QTextLayout::FormatRange> > formats;
    };

In addition to the path containing the shape, the widget holds the raw textitself as a sequence of paragraphs in a QStringList, and a list offormats is kept for each paragraph.

Since we will also stretch the shape to fit the size of the widget, ithelps to keep track of the scaling factors used as well as the shape'soriginal size. This helps us to write the positionLayouts() function,which tries to fit each paragraph inside the scaled shape, generating alist of QTextLayout objects that describe the flow of text.

Implementing most functions in the class is straightforward. The constructorsets up some default attributes for the text; to save space, we only show theword wrapping and alignment options:

    TextWidget::TextWidget(QWidget *parent)
        : QWidget(parent)
    {
        shapeWidth = 320.0;
        shapeHeight = 320.0;
        ...
        option = QTextOption(Qt::AlignJustify);
        option.setWrapMode(QTextOption::WordWrap);
    }

Although no shape is used initially, a default shape size is alsoprovided since this is used as the basis of the widget's size hint:

    QSize TextWidget::sizeHint() const
    {
        return QSize(int(shapeWidth), int(shapeHeight));
    }

The current shape is set with the setShape() function, in which westore the new shape supplied along with its dimensions---we assume thatthe coordinates used to define the QPainterPath all have positivevalues, resulting in a size that includes a border around the shape.

    void TextWidget::setShape(QPainterPath newShape)
    {
        shape = newShape;
        shapeWidth = newShape.boundingRect().right()
                   + newShape.boundingRect().left();
        shapeHeight = newShape.boundingRect().bottom()
                    + newShape.boundingRect().top();
        positionLayouts();
        update();
    }

Having obtained a new shape, the first task we perform is to callpositionLayouts() to lay out the text in the widget. Then we cancall update() to display the new layout to the user.

Similarly, when the widget is resized, we need to lay out the text againand update the widget.

    void TextWidget::resizeEvent(QResizeEvent *event)
    {
        positionLayouts();
        update();
    }

Before we look at the positionLayouts() function, let's take a look athow the widget is painted.

In the first part of the painting process, we fill the widget with asolid color and paint the scaled shape over it using a white brush anda black pen.

    void TextWidget::paintEvent(QPaintEvent *event)
    {
        QPainter painter;
        painter.begin(this);
        painter.setRenderHint(QPainter::Antialiasing);
        painter.fillRect(event->rect(), QColor("#a6ce39"));

        painter.save();
        painter.setPen(QPen(Qt::black));
        painter.setBrush(QBrush(Qt::white));
        painter.scale(xScale, yScale);
        painter.drawPath(shape);
        painter.restore();

        foreach (QTextLayout *layout, layouts)
            layout->draw(&painter, QPointF(0, 0));
        painter.end();
    }

In the second part of the painting process, we iterate over the layoutsthat have been prepared, asking each one to paint its contents.

[править] Line by Line

The positionLayouts() function fills in the layouts list withQTextLayout objects that describe how each paragraph fits inside theshape. We'll only show the body of the function to save space.

We begin by establishing the default font and line height, and wecalculate the scale factor used to resize the shape to fill the entirewidget. We also convert the shape's painter path to a list of polygons to usewhen we try to fit lines within the available space.

    QFontMetricsF fm(font);
    qreal lineHeight = fm.height();

    xScale = width()/shapeWidth;
    yScale = height()/shapeHeight;
    QMatrix m(xScale, 0.0, 0.0, yScale, 0.0, 0.0);
    QList<QPolygonF> polygons = shape.toSubpathPolygons(m);

    qreal y = yScale * shape.boundingRect().top() + margin;
    qreal ymax = yScale * shape.boundingRect().bottom()
               - margin;
    qDeleteAll(layouts);
    layouts.clear();

The vertical position of the first line in the page, y, and thelowest position we can move to, ymax, are determined from the scalefactor, shape and margin. We discard the existing text layout bydeleting all current QTextLayout objects and clearing the layouts list.

We iterate over all paragraphs in the document, using a separate textlayout for each of them.Each layout is constructed with the raw text and the default font, butwe also supply a list of additional formats that influence the appearanceof the text.

    for (int p = 0; p < paragraphs.size(); ++p) {

      QTextLayout *textLayout =
                  new QTextLayout(paragraphs[p], font);
      textLayout->setTextOption(option);
      textLayout->setAdditionalFormats(formats[p]);
      textLayout->beginLayout();
      QTextLine line = textLayout->createLine();

With a layout ready to use, we obtain our first QTextLine object andstart the process of laying out the text.

As described earlier, we place horizontal lines above and below wherewe would like to place a line of text and test for intersections withthe lines that make up each polygon, storing all x-coordinates wherethese occur.

    while (line.isValid()) {

        QLineF topLine = QLineF(xmin, y, xmax, y);
        QLineF bottomLine = topLine;
        bottomLine.translate(0, lineHeight);
        QVector<qreal> xCoords;

        foreach (QPolygonF polygon, polygons) {
            for (int i = 0; (i+1) < polygon.size(); ++i) {
                QLineF l = QLineF(polygon[i], polygon[i+1]);
                QPointF p;
                if (l.intersect(topLine, &amp;p) ==
                    QLineF::BoundedIntersection)
                        xCoords.append(p.x());
                if (l.intersect(bottomLine, &amp;p) ==
                    QLineF::BoundedIntersection)
                        xCoords.append(p.x());
            }
        }

If there is an a positive, even number of intersections, we sort thex-coordinates and use the innermost ones as horizontal margins forthis line of text.

      if (xCoords.size() > 0 && (xCoords.size() % 2) == 0) {
          qSort(xCoords.begin(), xCoords.end());
          left = xCoords[xCoords.size()/2 - 1] + margin;
          right = xCoords[xCoords.size()/2] - margin;

          line.setPosition(QPointF(left, y));
          line.setLineWidth(right - left);

We can now set the position and width of the line using the marginsand current value of y, and move downwards by one line height.If the text fits into the available horizontal space and didn't crossthe bottom margin, we create a new line to work with.

        y += line.height();
          if (line.naturalTextWidth() <= (right - left)
              &amp;&amp; y <= ymax)
                line = textLayout->createLine();
        } else
            y += lineHeight;
        if (y + lineHeight > ymax) break;
      }

If, for some reason, we couldn't even try to place text in a line, wecontinue moving downwards until there is no space left, breaking out of theline layout loop.At this point, we may still have an "active" line to deal with. Currently,the only way to discard it is to place it outside the visible widget area.

    if (line.isValid())
          line.setPosition(QPointF(xScale * shapeWidth,
                                   yScale * shapeHeight));
      textLayout->endLayout();
      layouts.append(textLayout);

      y += paragraphSkip;
      if (y + lineHeight > ymax) break;
    }

With the paragraph laid out, we call endLayout() and append the layoutobject to the layouts list, ready to be painted. Before laying out thenext paragraph, we increase the y-coordinate to insert some extra space,or break out of the loop if we approach the bottom margin.

[править] Filling in the Gaps

The missing setParagraphs() function needed to set up characterformats is included in the example code, available here.
