Reordering OK and Cancel

Материал из Wiki.crossplatform.ru

Qt Quarterly | Выпуск 19 | Документация

[править] The QDialogButtonBox Class

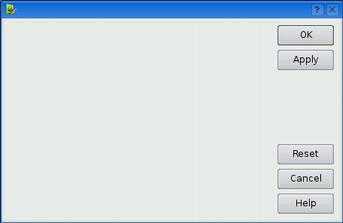

The QDialogButtonBox class is a QWidget subclass that you canpopulate with a set of buttons and insert in your dialog's layout. Bydefault, QDialogButtonBox lays out its buttons horizontally, butthis can be changed by passing Qt::Vertical to the constructor.

When adding buttons to a QDialogButtonBox, we also pass a"button role" that specifies how the button should be handled. Forexample:

box->addButton(tr("OK"), QDialogButtonBox::AcceptRole);
box->addButton(tr("Cancel"),QDialogButtonBox::RejectRole);
box->addButton(tr("Apply"), QDialogButtonBox::ApplyRole);
box->addButton(tr("Reset"), QDialogButtonBox::ResetRole);
box->addButton(tr("Help"), QDialogButtonBox::HelpRole);

QDialogButtonBox uses the roles to orderthe buttons correctly with respect to the user's window system or desktopenvironment. The table below explains the available roles.

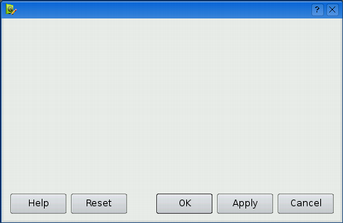

As of Qt 4.2, the class supports four "layout styles": Windows,Mac OS X, KDE, and GNOME. The buttons are ordered according to thecurrent layout style (specified by the active QStyle) and totheir roles. If there are several buttons with the same role, therelative order in which they were inserted is preserved in the finaldialog. Thus, on Windows, the buttons are organized as follows:

(In Windows and Mac OS X styles, YesRole and NoRole aretreated the same as AcceptRole and RejectRole, respectively.)On Mac OS X, the order is normally as follows:

Notice how the Help button is pushed to the far left, and howthe dialog's accept button (e.g., OK) is pushed to the right.What the diagram doesn't show is that if there is more than oneaccept button, the extra ones are put to the left of the rejectbutton, as specified in Apple Human Interface Guidelines.

Some buttons, such as OK, Cancel, and Help, occurover and over again in dialogs. For these, QDialogButtonBoxprovides convenience enum values that can be used instead ofspecifying a text and a role. For example:

box->addButton(QDialogButtonBox::Ok);
box->addButton(QDialogButtonBox::Cancel);
box->addButton(QDialogButtonBox::Apply);
box->addButton(QDialogButtonBox::Reset);
box->addButton(QDialogButtonBox::Help);

An alternative to calling addButton() for every button is to setthe standardButtons property (which also shows up in QtDesigner):

box->setStandardButtons(QDialogButtonBox::Ok
                        | QDialogButtonBox::Cancel
                        | QDialogButtonBox::Apply
                        | QDialogButtonBox::Reset
                        | QDialogButtonBox::Help);

[править] An Extended Message Box

In Qt 4.2, the QMessageBox class has been rewritten to use QDialogButtonBox to display its buttons. The API has also beenrevised so that it supports the same standard buttons and buttonroles as QDialogButtonBox. As a result, QMessageBox'sbuttons are now ordered correctly on the different platforms.

The new QMessageBox also features a more nativelook on Mac OS X, a more flexible API that caters for message boxeswith more than three buttons, and more sensible word-wrapping behavior.

[править] Example: A Mail Editor

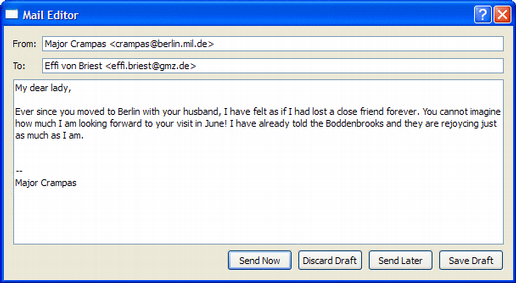

In this section, we will review the source code of a MailEditordialog class that uses QDialogButtonBoxand QMessageBox. The screenshots below showthe MailEditor dialog on Windows XP and Mac OS X.

Let's start with the constructor:

MailEditor::MailEditor(QWidget *parent)
    : QDialog(parent)
{
    ...

    sendNowButton = new QPushButton(tr("Send Now"));
    ...
    saveDraftButton = new QPushButton(tr("Save Draft"));
    sendNowButton->setDefault(true);

     buttonBox = new QDialogButtonBox;
     buttonBox->addButton(sendNowButton,
                          QDialogButtonBox::AcceptRole);
     buttonBox->addButton(discardDraftButton,
                          QDialogButtonBox::DestructiveRole);
     buttonBox->addButton(sendLaterButton,
                          QDialogButtonBox::RejectRole);
     buttonBox->addButton(saveDraftButton,
                          QDialogButtonBox::ActionRole);

    QGridLayout *layout = new QGridLayout;
    ...
    layout->addWidget(buttonBox, 3, 0, 1, 2);
    setLayout(layout);
}

We instantiate the QPushButtons as usual, but instead ofinserting them in a QHBoxLayout, we put them in a QDialogButtonBox. The table below lists the buttons, the roles wechose for them, and the reasons for that choice.

In the sendNow() slot, we callQDialog::accept() to close the dialog withan "accepted" result:

void MailEditor::sendNow()
{
    ...
    accept();
}

In discardDraft() and sendLater(), we callQDialog::reject() to close the dialog with a "rejected" result:

void MailEditor::discardDraft()
{
    ...
    reject();
}

void MailEditor::sendLater()
{
    saveDraft();
    reject();
}

The dialog's result value is accessible throughQDialog::result(). Unlike the other three slots, thesaveDraft() slot doesn't close the dialog:

void MailEditor::saveDraft()
{
    ...
    textEdit->document()->setModified(false);
}

If the user closes the dialog while there are unsaved changes, weshow a message box:

void MailEditor::closeEvent(QCloseEvent *event)
{
    if (textEdit->document()->isModified()) {
        int r = QMessageBox::warning(this,
                    tr("Mail Editor"),
                    tr("Do you want to save the draft "
                       "before closing?"),
                     QMessageBox::Save
                     | QMessageBox::DontSave
                     | QMessageBox::Cancel);
        if (r == QMessageBox::Save) {
            saveDraft();
            event->accept();
        } else if (r == QMessageBox::DontSave) {
            event->accept();
        } else {
            event->ignore();
        }
    }
}

Notice that we give meaningful labels to the message box's buttons,namely Save, Don't Save, and Cancel. For the user,this is much less error-prone than the traditional Yes and No choice.
