by Andreas Aardal Hanssen

Secure networking has two main requirements. Firstly, you must besure that you are communicating with your intended recipient.Secondly, you need to be confident that the data exchanged has notbeen tampered with or even read by a third party; and that even if itwas read, it could not be deciphered. This article shows how to create a secure client using the OpenSSL library and theQtSSLSocket Qt Solution that meets these requirements.

The SSL (Secure Sockets Layer) is the standard protocol providingnetwork level security. SSL is a software layer on top of the TCPlayer, that uses TCP packets to send encrypted data. ^[1]

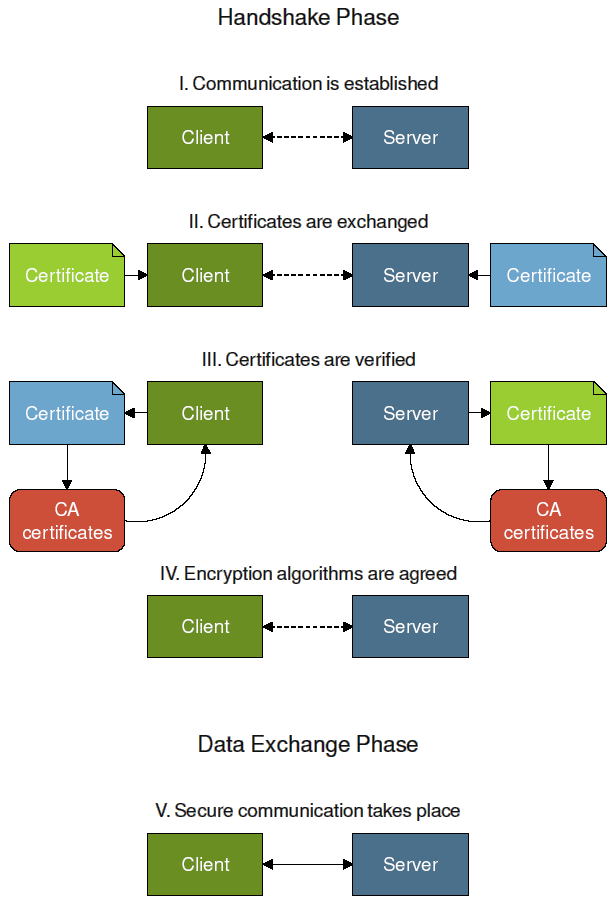

An SSL transmission has three phases: the negotiation (or handshake)phase, the data exchange phase, and the shutdown phase. During thehandshake phase, the server's (and optionally the client's) identityis verified through the exchange of public keys. The peers then agreeon a common algorithm to use for encrypting data in the data exchangephase. The cryptographic algorithms are seeded with random data, andthe data exchange phase begins.

At this point you know who your client has connected to (or whoconnected to your server). The data exchange phase is where the realuser data is sent between the client and the server. This data isencrypted with algorithms such as "DES3" or "Blowfish". Thesealgorithms are considered to be safe from tapping, tampering, andreplaying. When the data exchange phase ends, the shutdown phasestarts. Here, the client and the server ensure that each hasterminated the secure channel and that it is no longer carrying data.The socket connection is then closed.

The number of professional networking services on the Internet thatrequire SSL is both vast and growing. For example, you may want tosubmit purchase orders or to perform credit card transactions, and forthese, banks will insist upon the use of SSL. But Qt's networkingsupport, though good, does not include provision for SSL"out-of-the-box"; indeed there is no straightforward way to enableSSL in Qt applications.

One obvious solution is to link your Qt application against an SSLlibrary. But many of these libraries are complex, with difficult APIs,and either little or poor documentation. And all of them requirein-depth knowledge of the SSL procotol and its implementation. So whatcan you do if you don't know what an X.509 certificate looks like, butneed secure networking?

The answer is to use the QtSSLSocket from the QtSolutions team. QtSSLSocket allows QSocket-based networking applications to addSSL cryptographic support. This class has an easy-to-use interface,and requires no prior knowledge about the SSL protocol. This classprovides a socket for your data blocks, conveniently encrypting whatyou send and decrypting what you receive from your peer. UsingQtSSLSocket, you can easily add SSL to both your client andserver applications, while leaving elbow room for providing SSLencryption for protocols of any level of complexity. And the little SSLknowledge you need to know is in the documentation.

Let's make a simple SSL client. We can write a complete example injust 50 lines. Let's start with the definition of our Clientclass.

class Client : public QObject
{
    Q_OBJECT

public:
    Client(const QString &host, int port);

signals:
    void responseReceived();

private slots:
    void waitForGreeting();
    void readResponse();

private:
    QtSSLSocket *socket;
};

Just like any other QSocket client, we create a subclass with asocket (the QtSSLSocket in this case) as a private member.

Client::Client(const QString &host, int port)
{
    socket = new QtSSLSocket();
    connect(socket, SIGNAL(connected()), SLOT(waitForGreeting()));
    connect(socket, SIGNAL(readyRead()), SLOT(readResponse()));
    connect(socket, SIGNAL(connectionClosed()), qApp, SLOT(quit()));
    connect(socket, SIGNAL(delayedCloseFinished()), qApp, SLOT(quit()));
    socket->connectToHost(host, port);
}

In the constructor, we create our SSL socket and connect its signals,then connect to the host.

void Client::waitForGreeting()
{
    qDebug("Connected; now waiting for the greeting");
}

The waitForGreeting() slot is called when the connection has beenestablished.

void Client::readResponse()
{
    if (socket->canReadLine()) {
        qDebug("Received: %s", socket->readLine().latin1());
        socket->close();
    }
}

The readResponse() slot is just as easy as it would be witha normal QSocket subclass.

When the connection has been closed, the application will terminate.And that's it! For the sake of completeness, here's the main function.We used this example to connect to our IMAP server, which runs on port993:

int main(int argc, char *argv[])
{
    QApplication app(argc, argv, false);
    Client client("imap", 993);
    return app.exec();
}

Running this application gives the following output to the console,depending on what IMAP software you are running:

Connected! Now waiting for the greeting
Received: * OK imap Cyrus IMAP4 v2.1.12 server ready

So, is this all that's needed to communicate safely with SSL? Well,not quite. We can't tell whether or not the host's identity checksucceeded during the negotiation phase; there is no code in ourexample handling this important security feature. Let's add thenecessary code to rectify this deficiency.

First, we set the location of the CA certificate bundle. For the sakeof this example, we use the path /etc/ssl/certs, but thelocation of the bundle is different for different operating systemsand distributions. We insert this line into the constructor:

 socket->setPathToCACertDir("/etc/ssl/certs");

Then, we add a slot to catch certificate check failures:

private slots:
    void displayCertError(int, const QString &reason)

Next we connect our socket's signal to this slot:

  connect(socket, SIGNAL(certCheckFailed(int, const QString &)),
                  SLOT(displayCertError(int, const QString &)));

Now we implement the displayCertError() slot.

void Client::displayCertError(int, const QString &reason)
{
    qDebug("Certificate check failed: %s", reason.latin1());
    socket->close();
}

The slot's implementation outputs an error message and closes theconnection. This means that if the certificate cannot be verified, thecommunication is terminated rather than risking an insecureconnection.

The output from the modified program:

Certificate check failed: Self signed certificate in certificate chain

This is all that you need to do to add secure networking to your Qtapplications.

If you want to learn more, the QtSSLSocket documentation has aguide to handling SSL private keys, certificates and CertificateAuthorities.

Note that QtSSLSocket depends on OpenSSL. The OpenSSL library islicenced under an Apache-stylelicense, which essentially means that you are free to use it for bothcommercial and non-commercial purposes subject to some simple licenseconditions; see www.OpenSSL.org.
